Aqua Clean Multi

The Multi series parts cleaners are used especially in the machine working industry for cleaning and rinsing of machined components before assembly, painting and heat treating.

The machines are used when the cleanliness standards require both cleaning and rinsing, which we call a multi-stage process. There are also special versions of our Multi-series available, which are used in the aerospace/aviation and the railway, metro and tram industries.

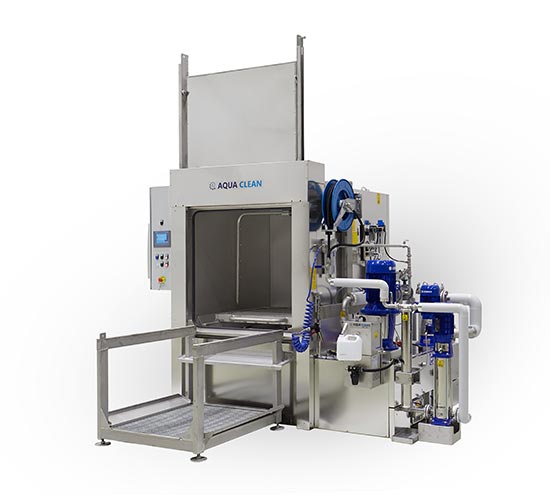

The machine is manufactured in stainless steel and consists of a heat insulated enclosed cabinet with one or two mechanically driven lifting doors, rotating spray system and a tank system with an automatic refill function. A load platform or a load trolley is placed in front of the cleaning machine for the loading and unloading phases. The machines can feature two or three liquid tanks, rinsing fixtures, drying with a fan or with cold or hot air blast, and automated transport systems.

The cleaning, degreasing and rinsing processes are carried out with a rotating spray system with built-in nozzles. The hot liquid is sprayed from all directions onto the components with a high mechanical effect. After each process, the liquid is filtered with a full-flow filter system and returned into the proper tank. The filter unit and filter baskets are located at the side of the machine, thereby making the filters easy to clean.

The machines can also be supplied with a reciprocating spray systems. Such systems are used in situations where the length of the components to be cleaned is much longer than their width.

Main benefits:

High quality and a robust structure
Excellent cleaning results
High productivity
Easy maintenance and operation

Intended for:

Medium and large-size components
Washing and rinsing with drying option
Production lines

Item	Process	Solution
Cleaning of gearbox parts before heat treatment	Cleaning and rinsing	AQUA CLEAN Multi AC-1.3; cleaning height 1.200 mm, conveyor system, cabin with front and back doors.
Washing hydraulic filter parts, where it is important to achieve an excellent level of cleanliness	Cleaning, rinsing, hot air blowing, drying unit.	Aqua Clean Multi ACV-1.7-2 with cabin height 900mm. The machine equipped with a lowered washing height due to the low pieces. Integrated drying system. Manual T-track front of cabin which are equipped with two moveable load platform
Cleaning of hydraulic motor parts before assembly	Cleaning and 2x rinsing (outside and inside)	AQUA CLEAN Multi AC-2.0; cleaning height 1.200 mm, internal cleaning nozzles, conveyor system, cabin with front and back doors
Cleaning the diesel engine block and engine parts	Cleaning, rinsing and treatment process	AQUA CLEAN Multi AC-2.5; motored load carrier
Cleaning large steel structures	Cleaning and rinsing	AQUA CLEAN Multi AC-2.5; load capacity 5 000 kg
Cleaning components after heat treatment	Clening, rinsing and drying	AQUA CLEAN Multi AC-2.5; with intergrated drying system

Machine Type	2-Stage: Wash and Rinse					3-Stage: Wash, 2 x Rinse
Model	ACV 1.3-2	ACV 1.7-2	ACV 2.0-2	ACV 2.5-2	ACV 2.9-2	ACV 1.3-3	ACV 1.7-3	ACV 2.0-3	ACV 2.5-3	ACV 2.9-3
Width A mm	2800	3200	3050	3550	4340	2800	3200	3500	4000	5150
Depth B mm	1690	1990	2290	2790	3290	1690	1990	2290	2790	3290
Depth B1 mm	1170	1470	1770	2270	2770	1170	1470	1770	2270	2770
Height C mm	2415	2415	2415	2415	2550	2415	2415	2415	2415	2550
Height C1 mm	910	910	910	910	1080	910	910	910	910	1080
Height C2 mm*	900	900	900	900	900	900	900	900	900	900
Height C3 mm	3390	3390	3390	3390	3650	3390	3390	3390	3390	3650
Carriage L x W mm	1000	1300	1600	2000	2400	1000	1300	1600	2000	2400
Component max L x W mm	1000	1300	1600	2000	2400	1000	1300	1600	2000	2400
Component max height mm	900	900	900	900	900	900	900	900	900	900
Component max diameter mm	1100	1500	1800	2300	2700	1100	1500	1800	2300	2700
Carriage load capacity kg**	1000	1000	1000	2000	4000	1000	1000	1000	2000	4000

Option	Description	Benefits
Load platform LP	Mounted in front of the machine, supports the load carriage when it is outside of machine	More comfortable and ergonomic operation
Load trolley LT	Wheeled trolley for transporting the load carriage	Increased productivity
T-conveyor, manual TC	Load carriage can be moved sideways when outside of machine	Increased productivity
Powered load carriage MC	Controlled with push button operation, gear motor fitted with a frequency converter	More comfortable and ergonomic operation
Through going conveyor system TR	Transports the carriage from the loading station into the machine and through to the unloading station	Increased productivity
Safety sensor for door TI	Enables manual spraying of objects	Increased safety
Cleaning machine with two lifting doors LD2	Additional door on rear of machine	Increased productivity
Increased height of wash cabinet	Higher wash cabinet (see C2 height)	Meet your special needs

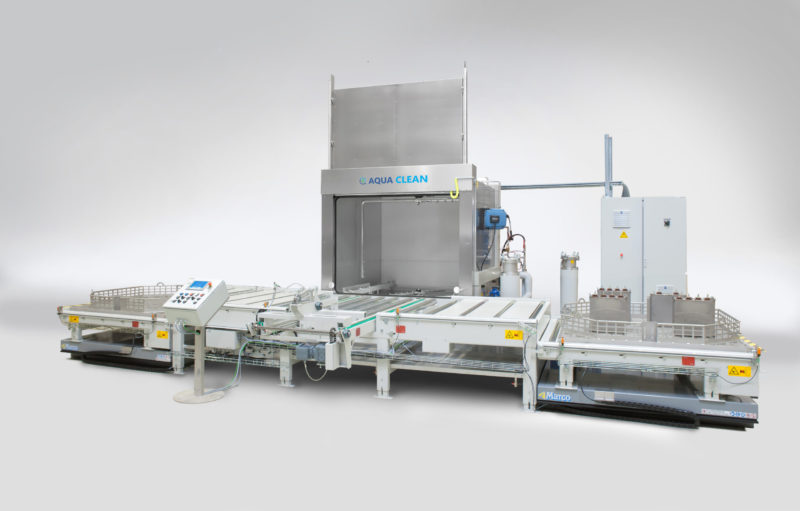

AVX automatic T-conveyor system	Loadcarrier moved automatic from loading area in the machine and after cleaning to the unloading area	Increased productivity and reduces operator strain

OPTION	DESCRIPTION	BENEFITS
Oil skimmer OS-AC	Separates oil from the wash liquid with a rotating disc after the washing process	Increased wash liquid life
Oil separator OS	Separates oil from the wash liquid very effectively after the washing process, returns the cleaned liquid into tank	Increased wash liquid life
Automatic Water Refill AT (standard)	Monitors liquids level in tank, automatically adds water	Increased productivity
Dosing system DU	Adds required amount of detergent when filling tank	Helps ensure wash quality
By-pass filter CF	Pumps liquid through filter unit, returns filtered liquid into the tank via spray bars fitted with nozzles	Prevents pariculate build up and sedimentation on the bottom of tank
Fine filter FF	Liquid is pumped through a full-flow filter with pressure switch and alarm	Keeps solid particles from being sprayed on components
Fluid-solids separation JPL	Effectively remove solids from liquid, which is pumped through the separator and then filtered before returning into the tank	Improved wash quality, increased productivity
Motor Driven Spray MD (standard)	Rotates the spray system at set speed	Enables manual spraying of objects
Spray gun and lance SL	Spray gun and lance installed on the side of the machine	More flexibility without fixtures
Integrated drying DO	Dries the parts after the washing/rinsing process with a fan-heating unit.	Increased productivity
Air Blast TBV	Heated compressed air is blown via rotating air nozzles from above onto the parts, enabling components to dry faster	Increased productivity

Option	Description	Benefits
Steam extractor fan AF	Extracts steam from washing cabinet after the washing process	Steam-free door opening
Steam condenser FX	Exhausts steam from the cabinet and cold air from workshop, cools steam down and returns liquid back to tank	Easier installation and relocating machine on-site
